Animation is one of the main features of SPRY Scheduler, one of its functions is to arrange the layout on the SPRY graphical output. Everything displayed in the animation will also be displayed in pictures or videos exported from SPRY Scheduler.

When setting up the animation display, it is not uncommon for users to have their own layout settings such as the animation viewing angle, etc. This layout is also often used for the next scheduling scenario. SPRY has a feature to save animation layout templates so that users don’t need to create or arrange new animation layouts every time they are needed, simply by saving and using the previously prepared layout template.

The following steps will guide you on how to save and use the animation layout template setup in SPRY Scheduler.

1. Set up desired Animation Display (source – destination range, color set, etc.)

2. Click “Reset View” and “Save As”

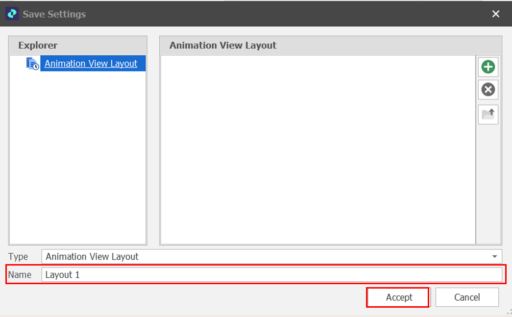

3. Enter a name for the layout which will be saved and click Accept to save.

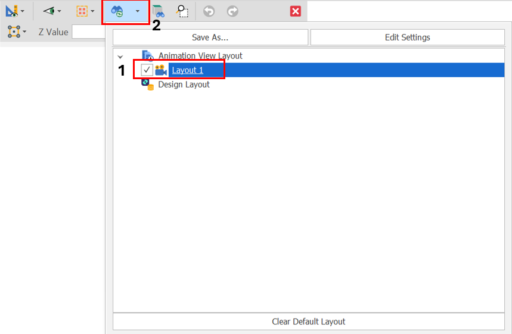

4. When you want to use the template, select the saved layout from the available list. Click Reset View to apply the selected template.
