When conducting manual scheduling, you will be determining the work area for each piece of equipment during specific time periods. Sometimes, there is a chance of forgetting the work area boundaries for each piece of equipment, which may lead to overlapping work areas for different equipment (Multiple Equipment). This can be prevented by following the tips below:

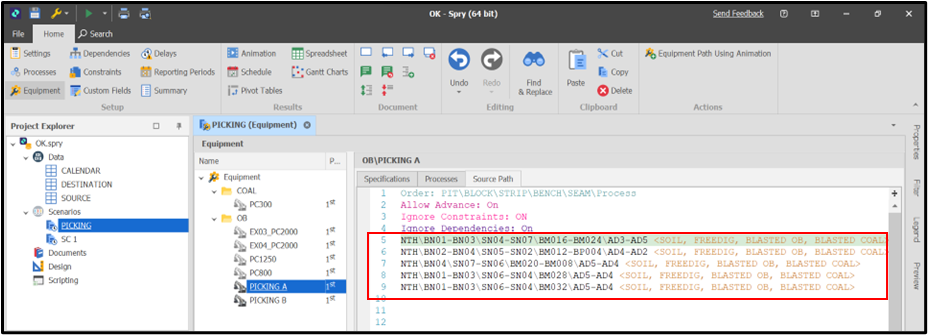

1) Ensure that the first equipment (in this case, named PICKING A) has its Source Path filled, and then click “Run Scenario.”

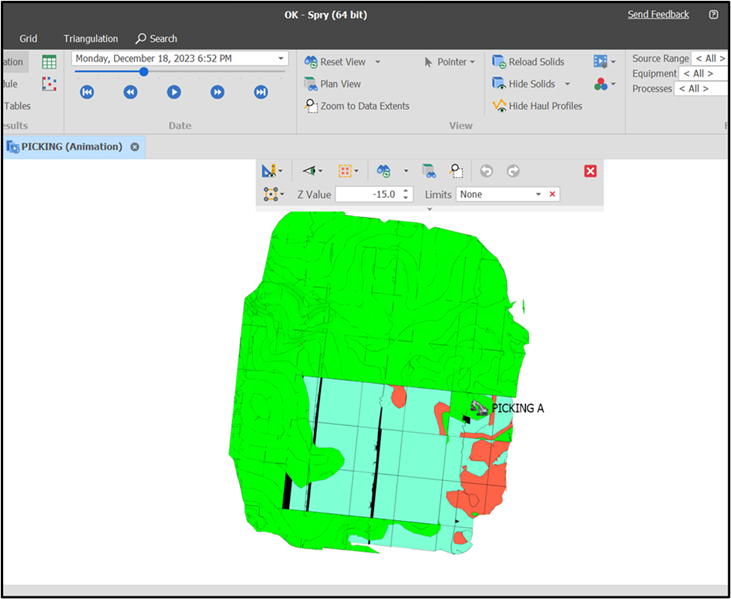

2) To verify that the manual scheduling for the first equipment is correct, you can check the results in the Animation menu.

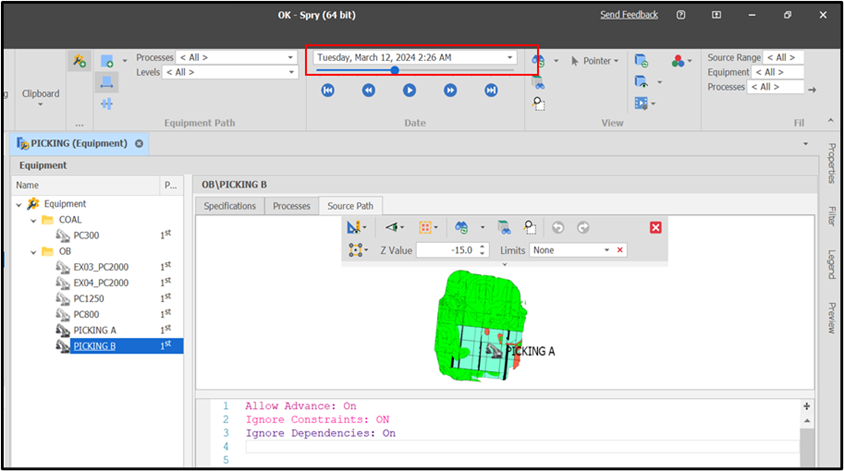

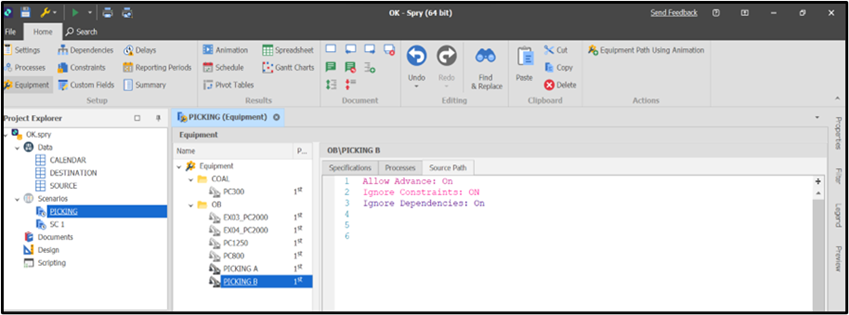

3) On the Source Path of the second equipment (for example, Equipment B), click “Equipment Path Using Animation” (just like when performing manual scheduling).

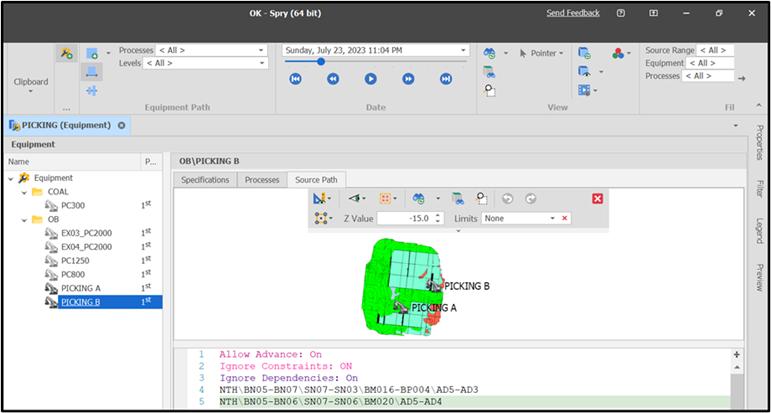

4) Scroll through the Animation Player until you determine the boundaries of Equipment A.

5) Once the boundaries of the first equipment are known, you can proceed with manual scheduling for the next equipment without worrying about overlapping areas between the two pieces of equipment.
