Creating Triangulation in SPRY

Triangulation is a commonly used data type for enhancing the informativeness of SPRY animations. The most common type of triangulation used in SPRY animations is topography triangulation, which is combined with the Final Pit Design.

Previously, triangulation had to be processed in other software before being imported into SPRY. Now, with the new Triangulation feature, you can create triangulation directly in SPRY.

Here is how to create triangulation:

Prepare the dxf file data from the topography that has been combined with the Pit Design.

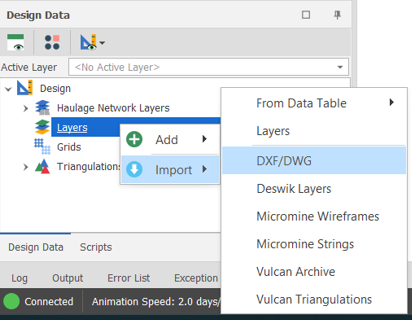

Import the data into the Design Layer of SPRY Scheduler.

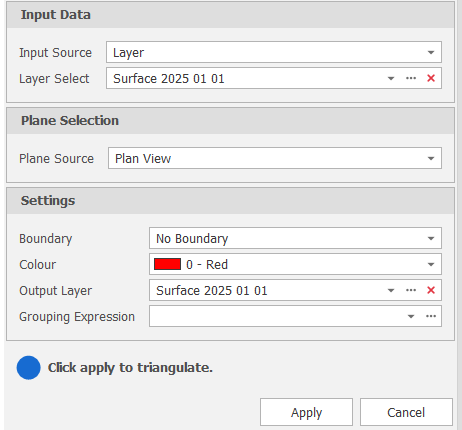

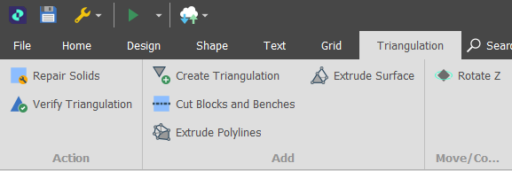

Create triangulation from the imported dxf file.

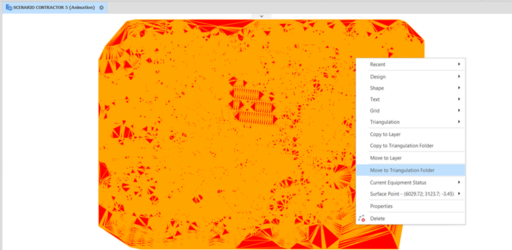

Once the triangle is formed in the Design Layer Folder, move it to the Design Triangle Folder.

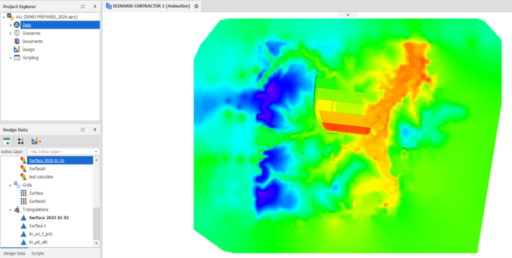

Once the triangle is moved to the Design Triangle Folder, it is ready for use.
